一、kafka简介
Kafka 被称为下一代分布式-订阅消息系统,是非营利性组织ASF(Apache Software Foundation,简称为ASF)基金会中的一个开源项目,比如HTTP Server、Hadoop、ActiveMQ、Tomcat等开源软件都属于Apache基金会的开源软件,类似的消息系统还有RbbitMQ、ActiveMQ、ZeroMQ,最主要的优势是其具备分布式功能、并且结合zookeeper可以实现动态扩容。

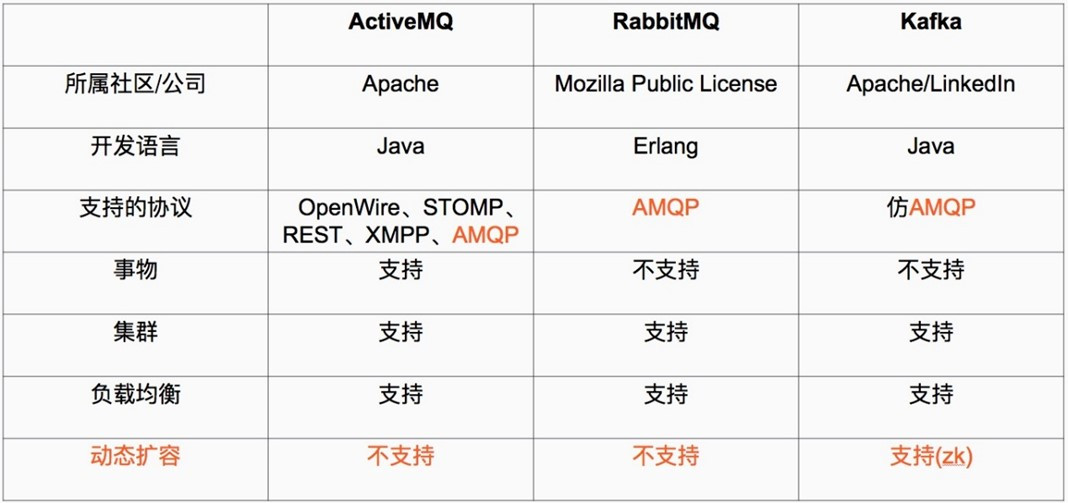

Apache Kafka 与传统消息系统相比,有以下不同:
文章源自小柒网-https://www.yangxingzhen.cn/9396.html
1)它被设计为一个分布式系统,易于向外扩展;
文章源自小柒网-https://www.yangxingzhen.cn/9396.html
2)它同时为发布和订阅提供高吞吐量;
文章源自小柒网-https://www.yangxingzhen.cn/9396.html
3)它支持多订阅者,当失败时能自动平衡消费者;
文章源自小柒网-https://www.yangxingzhen.cn/9396.html
4)它将消息持久化到磁盘,因此可用于批量消费,例如ETL,以及实时应用程序。
文章源自小柒网-https://www.yangxingzhen.cn/9396.html
文章源自小柒网-https://www.yangxingzhen.cn/9396.html
二、安装JDK
JDK下载地址:https://www.oracle.com/java/technologies/javase/javase8-archive-downloads.html
文章源自小柒网-https://www.yangxingzhen.cn/9396.html
1、安装JDK-1.8
文章源自小柒网-https://www.yangxingzhen.cn/9396.html
[root@localhost ~]# yum -y install jdk-8u351-linux-x64.rpm
文章源自小柒网-https://www.yangxingzhen.cn/9396.html
2、查看是否安装成功
文章源自小柒网-https://www.yangxingzhen.cn/9396.html
[root@localhost ~]# java -version
java version "1.8.0_351"
Java(TM) SE Runtime Environment (build 1.8.0_351-b10)
Java HotSpot(TM) 64-Bit Server VM (build 25.351-b10, mixed mode)
三、安装Zookeeper
1、下载zookeeper安装包
[root@localhost ~]# wget -c https://dlcdn.apache.org/zookeeper/zookeeper-3.7.1/apache-zookeeper-3.7.1-bin.tar.gz
2、解压并重命名
[root@localhost ~]# tar xf apache-zookeeper-3.7.1-bin.tar.gz
[root@localhost ~]# mv apache-zookeeper-3.7.1-bin /usr/local/zookeeper
[root@localhost ~]# mkdir -p /usr/local/zookeeper/{data,logs}
注:如果不配置dataLogDir,那么事务日志也会写在data目录中。这样会严重影响zookeeper的性能。因为在zookeeper吞吐量很高的时候,产生的事务日志和快照日志太多。
[root@localhost ~]# cd /usr/local/zookeeper/conf
[root@localhost conf]# cp zoo_sample.cfg zoo.cfg
[root@localhost conf]# vim zoo.cfg
# 服务器之间或客户端与服务器之间的单次心跳检测时间间隔,单位为毫秒
tickTime=2000
# 集群中leader服务器与follower服务器第一次连接最多次数
initLimit=10
# 集群中leader服务器与follower服务器第一次连接最多次数
syncLimit=5
# 客户端连接 Zookeeper 服务器的端口,Zookeeper 会监听这个端口,接受客户端的访问请求
clientPort=2181
# 存放数据文件
dataDir=/usr/local/zookeeper/data
# 存放日志文件
dataLogDir=/usr/local/zookeeper/logs
4、配置系统服务
[root@localhost conf]# vim /etc/systemd/system/zookeeper.service
[Unit]
Description=Zookeeper Server
After=network-online.target remote-fs.target nss-lookup.target
Wants=network-online.target
[Service]
Type=forking
ExecStart=/usr/local/zookeeper/bin/zkServer.sh start
ExecStop=/usr/local/zookeeper/bin/zkServer.sh stop
User=root
Group=root
[Install]
WantedBy=multi-user.target
5、启动Zookeeper
[root@localhost conf]# systemctl daemon-reload
[root@localhost conf]# systemctl start zookeeper
[root@localhost conf]# systemctl enable zookeeper
6、查看Zookeeper端口和进程
[root@localhost conf]# netstat -lntup |grep 2181
[root@localhost conf]# ps -ef |grep zookeeper
7、查看Zookeeper状态
[root@localhost conf]# /usr/local/zookeeper/bin/zkServer.sh status
/bin/java
ZooKeeper JMX enabled by default
Using config: /usr/local/zookeeper/bin/../conf/zoo.cfg
Client port found: 2181. Client address: localhost. Client SSL: false.
Mode: standalone
四、安装Kafka
1、下载安装包
[root@localhost conf]# cd ~ && wget -c https://archive.apache.org/dist/kafka/3.2.1/kafka_2.13-3.2.1.tgz
2、解压并重命名
[root@localhost ~]# tar xf kafka_2.13-3.2.1.tgz
[root@localhost ~]# mv kafka_2.13-3.2.1 /usr/local/kafka
3、配置server.properties
[root@localhost ~]# vim /usr/local/kafka/config/server.properties
broker.id=0
listeners=PLAINTEXT://192.168.8.38:9092
num.network.threads=3
num.io.threads=8
socket.send.buffer.bytes=102400
socket.receive.buffer.bytes=102400
socket.request.max.bytes=104857600
log.dirs=/usr/local/kafka/logs
num.partitions=1
num.recovery.threads.per.data.dir=1
offsets.topic.replication.factor=1
transaction.state.log.replication.factor=1
transaction.state.log.min.isr=1
log.retention.hours=168
log.segment.bytes=1073741824
log.retention.check.interval.ms=300000
zookeeper.connect=localhost:2181
zookeeper.connection.timeout.ms=18000
group.initial.rebalance.delay.ms=0
delete.topic.enable=true
auto.create.topics.enable=true
4、配置系统服务
[root@localhost ~]# vim /etc/systemd/system/kafka.service
[Unit]
Description=Kafka Server
After=network-online.target remote-fs.target nss-lookup.target
Wants=network-online.target
[Service]
Type=forking
ExecStart=/usr/local/kafka/bin/kafka-server-start.sh -daemon /usr/local/kafka/config/server.properties
ExecStop=/usr/local/kafka/bin/kafka-server-stop.sh
User=root
Group=root
[Install]
WantedBy=multi-user.target
5、启动Kafka
[root@localhost ~]# systemctl daemon-reload
[root@localhost ~]# systemctl start kafka
[root@localhost ~]# systemctl enable kafka
6、创建topic
# 创建名为test,partitions(分区)为10,replication(副本)为1的topic
[root@localhost ~]# /usr/local/kafka/bin/kafka-topics.sh --create --bootstrap-server 192.168.8.38:9092 --partitions 10 --replication-factor 1 --topic test
Created topic test.

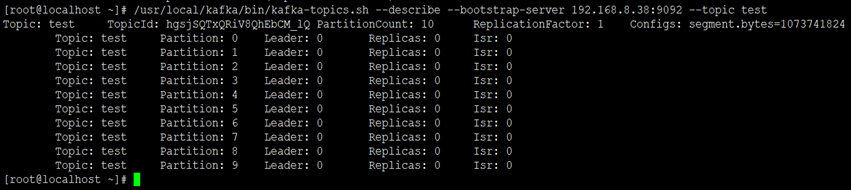

7、获取topic
[root@localhost ~]# /usr/local/kafka/bin/kafka-topics.sh --describe --bootstrap-server 192.168.8.38:9092 --topic test
8、删除topic
[root@localhost ~]# /usr/local/kafka/bin/kafka-topics.sh --delete --bootstrap-server 192.168.8.38:9092 --topic test
9、获取所有topic
[root@localhost ~]# /usr/local/kafka/bin/kafka-topics.sh --list --bootstrap-server 192.168.8.38:9092
10、kafka命令测试消息发送
1)创建topic
[root@localhost ~]# /usr/local/kafka/bin/kafka-topics.sh --create --bootstrap-server 192.168.8.38:9092 --partitions 10 --replication-factor 1 --topic test
Created topic test.
2)发送消息
[root@localhost ~]# /usr/local/kafka/bin/kafka-console-producer.sh --broker-list 192.168.8.38:9092 --topic test
>hello
>test
3)获取数据
[root@localhost ~]# /usr/local/kafka/bin/kafka-console-consumer.sh --bootstrap-server 192.168.8.38:9092 --topic test --from-beginning
hello
test
五、配置PLAIN认证
1、修改server.properties
[root@localhost ~]# vim /usr/local/kafka/config/server.properties
broker.id=0
listeners=SASL_PLAINTEXT://192.168.8.38:9092
advertised.listeners=SASL_PLAINTEXT://192.168.8.38:9092
security.inter.broker.protocol=SASL_PLAINTEXT
sasl.enabled.mechanisms=PLAIN
sasl.mechanism.inter.broker.protocol=PLAIN
authorizer.class.name=kafka.security.authorizer.AclAuthorizer
allow.everyone.if.no.acl.found=true
num.network.threads=3
num.io.threads=8
socket.send.buffer.bytes=102400
socket.receive.buffer.bytes=102400
socket.request.max.bytes=104857600
log.dirs=/usr/local/kafka/logs
num.partitions=10
num.recovery.threads.per.data.dir=1
offsets.topic.replication.factor=1
transaction.state.log.replication.factor=1
transaction.state.log.min.isr=1
log.retention.hours=168
log.segment.bytes=1073741824
log.retention.check.interval.ms=300000
zookeeper.connect=localhost:2181
zookeeper.connection.timeout.ms=18000
group.initial.rebalance.delay.ms=0
delete.topic.enable=true
auto.create.topics.enable=true
2、添加SASL配置文件
[root@localhost ~]# vim /usr/local/kafka/kafka_server_jaas.conf
KafkaServer {
org.apache.kafka.common.security.plain.PlainLoginModule required
username="admin"
password="Aa123456"
user_admin="Aa123456"
user_producer="Aa123456"
user_consumer="Aa123456";
};
说明:该配置通过org.apache.org.apache.kafka.common.security.plain.PlainLoginModule指定采用PLAIN机制,定义了用户。
usemame和password指定该代理与集群其他代理初始化连接的用户名和密码
"user_"为前缀后接用户名方式创建连接代理的用户名和密码,例如,user_producer="Aa123456"是指用户名为producer,密码为Aa123456
username为admin的用户,和user为admin的用户,密码要保持一致,否则会认证失败
上述配置中,创建了三个用户,分别为admin、producer和consumer(创建多少个用户,可根据业务需要配置,用户名和密码可自定义设置)
3、修改启动脚本

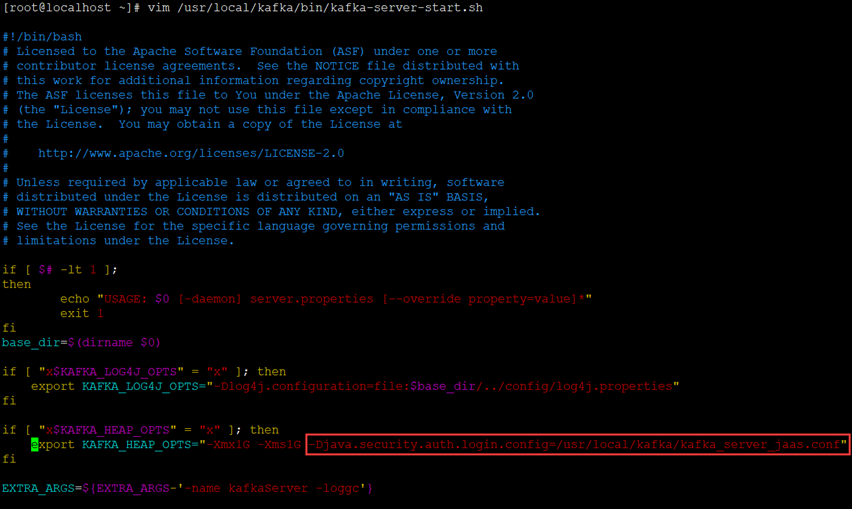

[root@localhost ~]# vim /usr/local/kafka/bin/kafka-server-start.sh
# 找到KAFKA_HEAP_OPTS,添加jvm参数为kafka_server_jaas.conf文件
-Djava.security.auth.login.config=/usr/local/kafka/kafka_server_jaas.conf

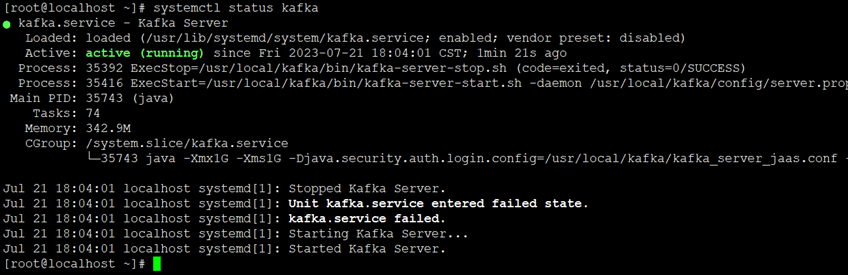

4、重启Kafka
[root@localhost ~]# systemctl restart kafka
[root@localhost ~]# systemctl status kafka
5、创建客户端认证配置文件
[root@localhost ~]# vim /usr/local/kafka/kafka_client_jaas.conf
KafkaClient {
org.apache.kafka.common.security.plain.PlainLoginModule required
username="producer"
password="Aa123456";
};
注:这里配置用户名和密码需要和服务端配置的账号密码保持一致,这里配置了producer这个用户。

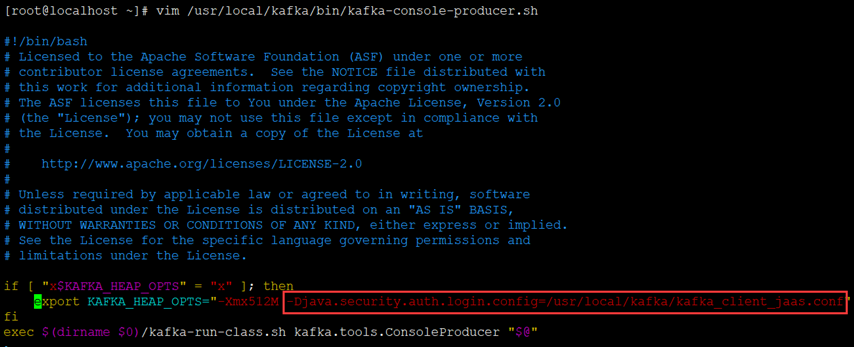

6、添加kafka-console-producer.sh认证文件
[root@localhost ~]# vim /usr/local/kafka/bin/kafka-console-producer.sh
找到"KAFKA_HEAP_OPTS",添加以下参数:
-Djava.security.auth.login.config=/usr/local/kafka/kafka_client_jaas.conf

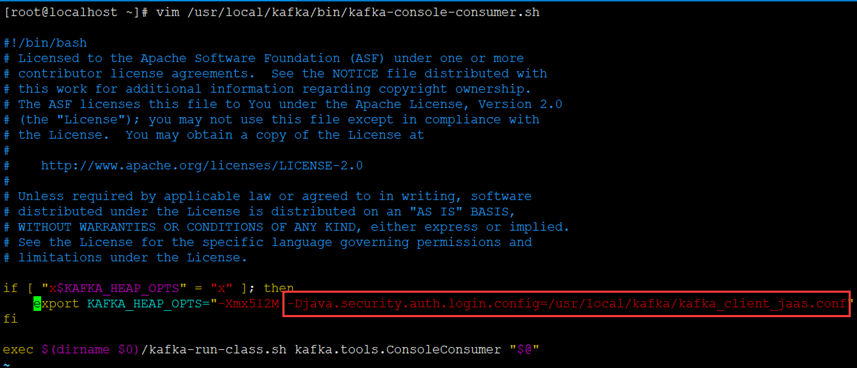

7、添加kafka-console-consumer.sh认证文件
找到"KAFKA_HEAP_OPTS",添加以下参数:
-Djava.security.auth.login.config=/usr/local/kafka/kafka_client_jaas.conf
8、客户端验证
# 生产者
[root@localhost ~]# /usr/local/kafka/bin/kafka-console-producer.sh --broker-list 192.168.8.38:9092 --topic test --producer-property security.protocol=SASL_PLAINTEXT --producer-property sasl.mechanism=PLAIN
>hello
>abc
>efg
# 消费者
[root@localhost ~]# /usr/local/kafka/bin/kafka-console-consumer.sh --bootstrap-server 192.168.8.38:9092 --topic test --from-beginning --consumer-property security.protocol=SASL_PLAINTEXT --consumer-property sasl.mechanism=PLAIN
hello
abc
efg
结果:生产者可正常生产数据,消费者能消费到数据。
